BD-49

”Ma” Williams, manufactured and modular homes

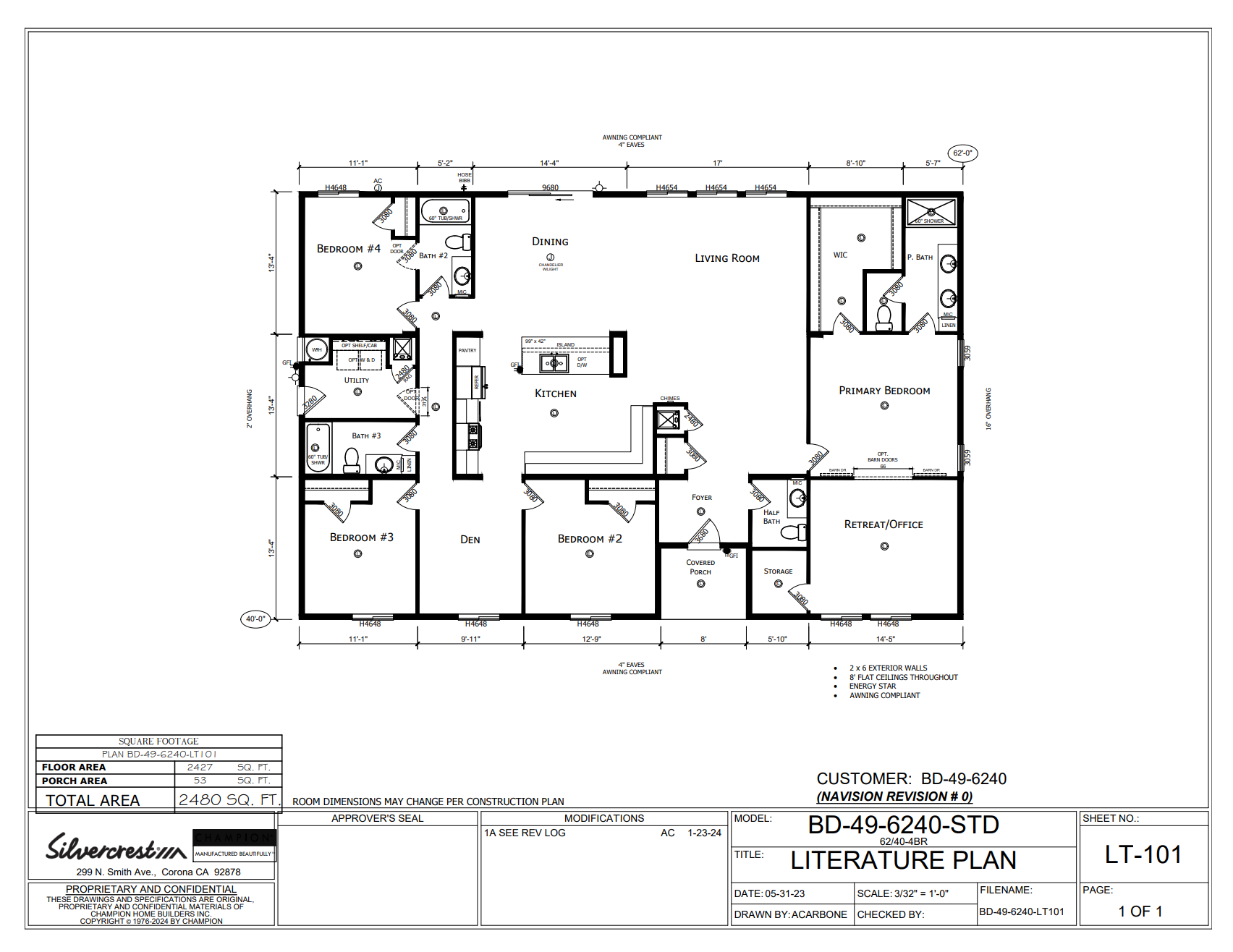

Floor Plan


Floor Plan Specifications

  • California CARD II Compliant Home
  • Includes Silvercrest’s “Silvershield” Seven-Year Warranty
    • NOW ALSO INCLUDES STRUCTURAL COVERAGE! (Deductibles apply, claims processed by Cornerstone United Insurance Company)
  • 20 lb. Roof Load
  • Insulation
    • Floor R-11
    • Walls R-13
    • Ceilings R-22
  • All Structural Lumber used in Kiln-Dried for Higher Quality
  • 2”x 6” Transverse Floor Joists – 16” on center
  • 2” x 4” Exterior Wall Studding- 16” on center
  • White vinyl framed, dual glazed windows with low-e coating for energy savings- windows are Energy Star rated and approved
  • PEX Water Lines
  • Water Shut-off valves at all sinks and toilets
  • 5/8” fire rated drywall ceilings
  • 1/2” drywall on all interior walls
  • ¾” OSB Floor decking
  • 96” Sidewall height- per plan
  • 100 amp electrical service
  • 30-gallon gas water heater
  • Gas down-flow furnace with manual thermostat
  • Steel outriggers on all exterior walls for support
  • Semi-glass exterior paint with three colors design featuring high-quality PPG paint
  • Class “A” fire-rated architectural shingles with Manufacturers 30-Year Limited Warranty
  • High wind nailing pattern on all shingles (6 nails per shingles vs. 4 staples from other manufacturers)
  • (2) Exterior GFI protected patio outlets (locations vary per plan)
  • 16” Front overhang
  • Sidewalls eaves per plan (construction modifications can affect standard eave design)
  • Craftsman-style shutters (Per plan)
  • Six-panel 36” fiberglass insulated entry door with deadbolt security lock
  • Six-panel 32” fiberglass insulated rear entry door with deadbolt security lock
  • All exterior doors with deadbolts feature a metal plate on door jam for added security
  • Name brand fiber-cement exterior siding materials with Manufacturers 25-Year Limited Warranty
  • 8” hardboard fascia and 4” hardboard corner and window trim
  • Hose bibb
  • 8’ Flat interior ceilings throughout
  • ½” drywall on walls with square corners
  • Orange peel-style textured finish on walls and ceilings
  • White walls standard- choice of six additional optional interior wall colors
  • Two-panel passage and wardrobe doors throughout
  • Dramatic sculptured passage door moldings
  • 3 ¼” sculptured floor moldings throughout (optional 5 ¼” also available!)
  • (3) mortised hinges on passage doors
  • Lever-style passage door locksets-satin nickel finish
  • Hand-finished wood cabinets throughout with solid end panel construction
  • Soft-close hidden hinges on cabinet doors
  • Side-mounted metal drawer guides
  • Rocker-style light switches with matching style wall outlets
  • All copper wiring throughout
  • Metal water shutoff valves at all fixtures
  • 2” white faux wood blinds with matching wood valance
  • Plumb/wire for washer and dryer
  • USB receptable in kitchen area for easy recharging of electronic devices
  • White wood window casings throughout (except bath areas)
  • 50 AMP circuit for AC
  • Electronic door chime
  • Painted wood shaker style cabinet doors
  • Can light in bedrooms
  • Whirpool white finished kitchen appliances
    • 30” gas freestanding range
    • 18 cubic foot double door refrigerator
  • Moen dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish and parts
  • Adjustable shelves in overhead cabinets finished with white lined cabinets interiors
  • 8” deep stainless steel self-rimming sink
  • Crown molding on all overhead cabinets
  • Toe-kick heat register in base cabinets (per plan)
  • Corian finish countertops with 4” backsplash, 2” front drop edge
  • Painted wood shaker style cabinet doors
  • Microwave range hood
  • Stainless steel appliances
  • Designer-selected light fixture above sinks
  • 60” one-piece fiberglass tub/shower
  • Corian counters with 4” backsplash
  • Beveled-edge mirrored medicine cabinet
  • China self-rimming sinks
  • Satin nickel lighting fixtures
  • Towel bar and paper holder-satin nickel finish
  • Elongated low-flow water-saving toilets
  • Moen dual-handle faucet with Manufacturers Limited Lifetime Warranty on finish and parts
  • Moen tub/shower faucet featuring pressure balance valves to help prevent temperature variations, reducing the chance of scalding
  • Ceiling vented exhaust fan
  • “Easy Care” Congoleum DiamondFlor vinyl floor covering
  • 60” shower in master bath
  • Framed mirrors
  • Medicine cabinets
  • Can light above tubs and showers

Photos


Floor Plan Description

Model NumberBD-49
Bedrooms4
Bathrooms3 1/2
Square Footage2480 SF
Width40'
Length62'

The BD-49 comes in at a whopping 2480 square feet! This triple wide floorplan is gorgeous and allows for so much room with 4 bedrooms and 3 1/2 baths. A part of the Bradford line from Silvercrest this home is a wonderful option if you are wanting an open layout and a larger home!

**Floor plan specifications and materials are subject to change without notice or obligation.**
