4610

”Ma” Williams, manufactured and modular homes

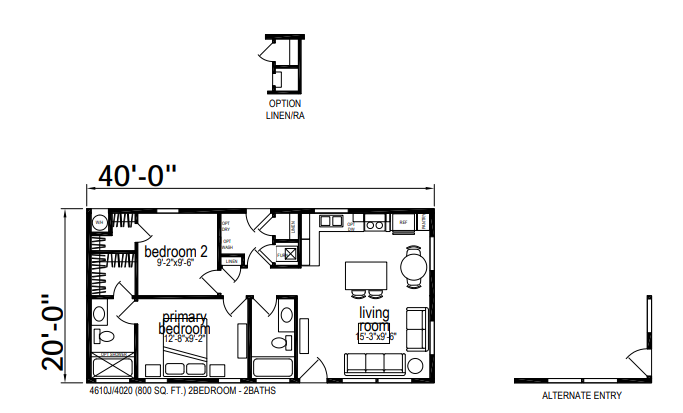

Floor Plan


Floor Plan Specifications

  • 2×6 Floor Joists with Tongue & Groove OSB Floor Decking
  • Pex Water Lines with shut off valves throughout
  • Insulation: Ceiling R-22, Walls R-11 & Floor R-11
  • Dual-Glazed Vinyl low-E Windows
  • 100 Amp Exterior Electrical Panel Box
  • 20lb Roof loand with 3:12 & 4: 12 Roof Pitch (per plan)
  • 40 gallon Gas Water Heater and Down Flow Gas Furnace
  • Vertical Cement Fiber Siding
  • Class “A” Architectural Roof Shingles
  • 36″ 6-panel front door with deadbolt, peephole & knocker
  • 12′ front overhang with 6″ side eaves per plan
  • Exterior window trim throughout
  • GFI Protected exterior outlets
  • 1/2″ Tape and Texture Drywall with hand-finished knock-down wall texture throughout
  • 2-Panel Interior Doors with Mortised Nickel Hinges and Lever handles
  • Shaw Carpet with 3/8″ Rebond Carpet Pad and Congoleum DiamondFlor in Kitchen, Dining Room, Baths & Utility
  • Sculptured Floor Molding and Door Casing Throughout
  • Low Sheen Interior Paint
  • 2″ Faux Wood Blinds with Faux Wood Valance
  • Toe Kick Registers in Kitchen and Baths
  • Harwood Shaker Cabinets with Bank of Drawers
  • Crown Molding on all Overhead Cabinets
  • Whirlpool Brand Name Appliances
  • 18.1 Cu. Ft. Frost-Free Refrigerator
  • 30″ Deluxe Gas Range with Electronic Ignition
  • 30″ Range Hood Vent
  • Laminate Countertop with Self-Edge and 6″ Backsplash
  • 60″ One-Piece Fiberglass Tub/Shower
  • China Self Rimming Sink with Overflow & Pop-up Drain
  • Elongated Water-Saver Commode
  • 36″ High Laminate Countertop with Self-Edge and 6″ Backsplash
  • Vanity Lighting Fixture
  • Vanity Mirror with Beveled Edge
  • Towel Bar & Tissue Holder with Satin Nickel Finish

Floor Plan Description

Model Number4610
Bedrooms2
Bathrooms2
Square Footage786 SF
Width19'8"
Length40'

This Amber Cove model is tiny in size but mighty in energy efficiencies!  Expertly designed 2 bedroom, 2 bath floor plan with living area, kitchen and dining room at the front of the home.  Perfect plan for an Accessory Dwelling Unit (ADU) or Second Unit. Hardwood cabinets with full extension drawer guides and sculpted floor moldings and door casings make this home beautiful.  Plenty of optional designs make this plan perfect for any property!

**Floor plan specifications and materials are subject to change without notice or obligation.**
